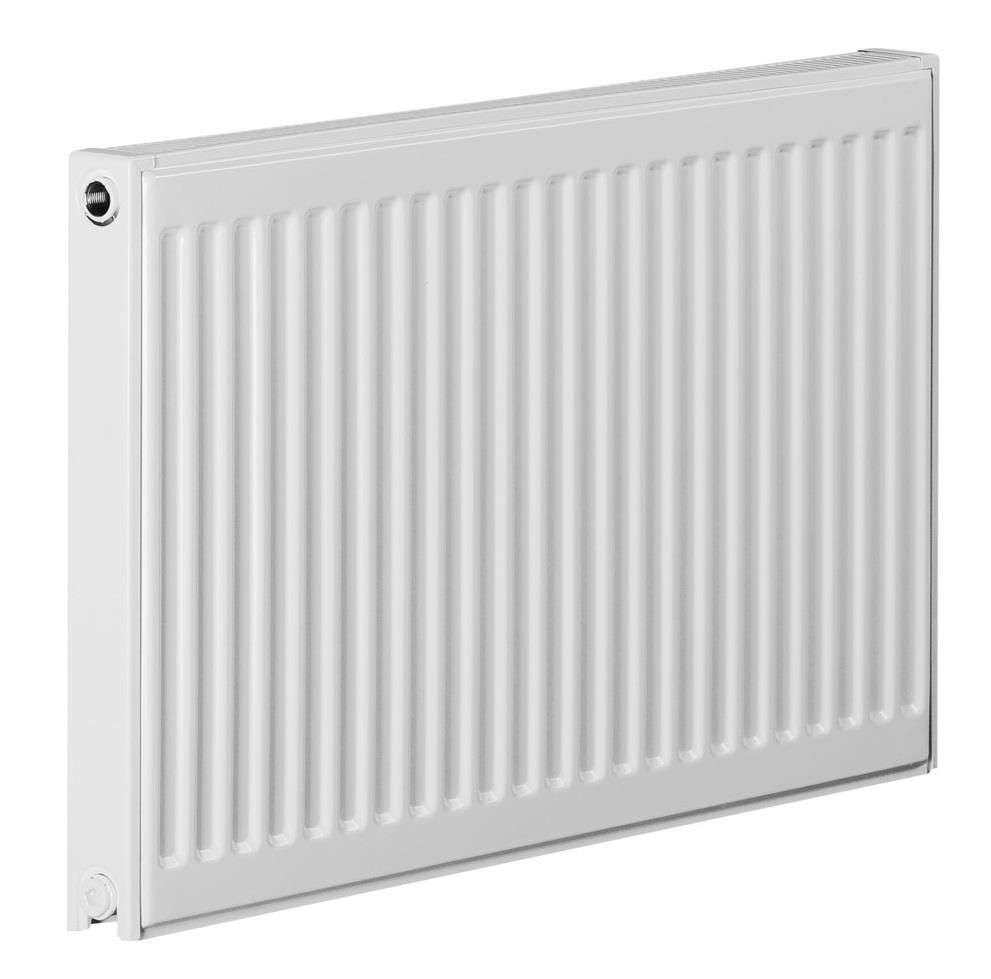

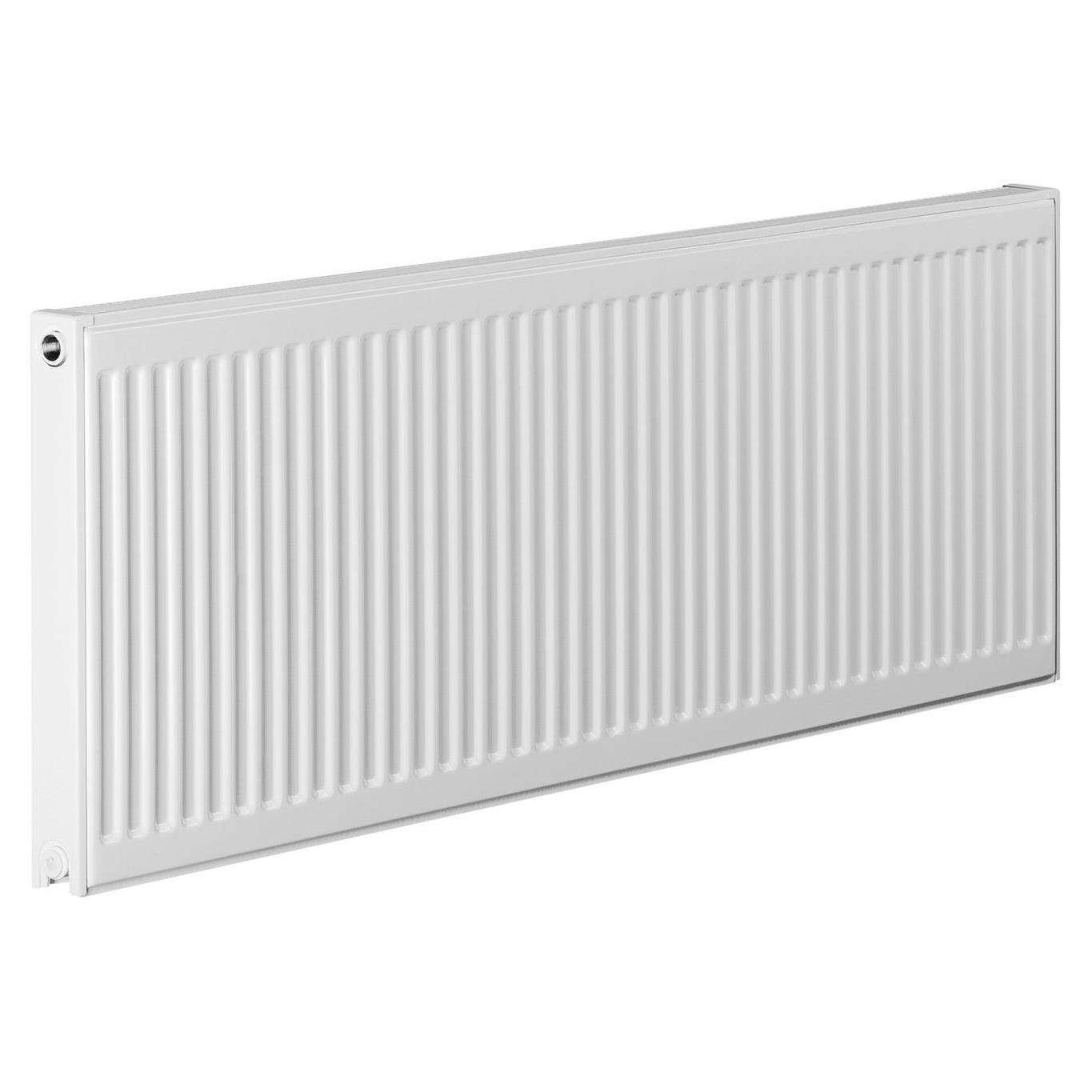

Prorad Type 21 Double Panel Compact Radiator 500mm high
£36.77 – £131.45
Description
Prorad radiators offer an up to date compact design coupled with a high quality build and finish from a leading radiator manufacturer. Fitted with grilles and panels, the slim radiator design will suit any room.
Manufactured to EN442 specifications, the radiators are tested to a maximum working pressure of 10 bar (regular central heating systems run at 1.5 bar), so they’re suitable for both domestic and commercial central heating systems. They come with a 10 year guarantee for maximum peace of mind.
Applications
Prorad radiators are suitable for two pipe installations. For single pipe applications it’s advisable to use diversion tees in the pipework as this will assist in obtaining design performance from the radiator. Whilst these radiators are suitable for micro bore pipework, the back tappings make it unsuitable for twin entry valves.
Installation
Everything required for installation can be found within the robust packaging. Brackets are of a strong design, with open top and deep slots, which facilitate easy and secure installation. Plastic inserts seat the radiator precisely on the bracket minimising expansion and contraction noise. The neat nickel-plated plug and vent provide a watertight joint, whilst complimenting the superior finish. Recommended height from the floor to the base of the radiator is 150mm minimum. This allows adequate airflow when the radiator is placed on the bracket.
Paint Process
Each Prorad radiator is subjected to a multi stage cleaning process before the paint is applied. This involves several rinsing stages, including an iron phosphate and demineralisation rinse. The first coat of paint is an environmentally friendly water based primer paint. The radiator is then stoved and cooled with a second powder coat in Warm White (RAL 9010) then applied followed by a final curing stage.
Alternative sizes
We stock a full range of Prorad radiators.
Radiator Valves
Valves are not included but we stock a wide range online.
Heat Outputs
| Part Number | Type | Height | Width | Heat Output BTU | Heat Output Watts |
| TYPE 11 SINGLE PANEL | |||||
| 411304 | Type 11 Single Panel | 300mm | 400mm | 703 | 206 |
| 411308 | Type 11 Single Panel | 300mm | 800mm | 1406 | 412 |
| 411314 | Type 11 Single Panel | 300mm | 1400mm | 2460 | 721 |
| 411318 | Type 11 Single Panel | 300mm | 1800mm | 3163 | 927 |
| 411320 | Type 11 Single Panel | 300mm | 2000mm | 3514 | 1030 |
| 411405 | Type 11 Single Panel | 400mm | 500mm | 1155 | 339 |
| 411406 | Type 11 Single Panel | 400mm | 600mm | 1386 | 406 |
| 411408 | Type 11 Single Panel | 400mm | 800mm | 1848 | 542 |
| 411410 | Type 11 Single Panel | 400mm | 1000mm | 2310 | 677 |
| 411412 | Type 11 Single Panel | 400mm | 1200mm | 2772 | 812 |
| 411414 | Type 11 Single Panel | 400mm | 1400mm | 3234 | 948 |
| 411416 | Type 11 Single Panel | 400mm | 1600mm | 3696 | 1083 |
| 411418 | Type 11 Single Panel | 400mm | 1800mm | 4158 | 1219 |
| 411420 | Type 11 Single Panel | 400mm | 2000mm | 4620 | 1354 |
| 411504 | Type 11 Single Panel | 500mm | 400mm | 1130 | 331 |
| 411505 | Type 11 Single Panel | 500mm | 500mm | 1413 | 414 |
| 411506 | Type 11 Single Panel | 500mm | 600mm | 1413 | 414 |
| 411507 | Type 11 Single Panel | 500mm | 700mm | 1978 | 580 |
| 411508 | Type 11 Single Panel | 500mm | 800mm | 2260 | 662 |
| 411509 | Type 11 Single Panel | 500mm | 900mm | 2543 | 745 |
| 411510 | Type 11 Single Panel | 500mm | 1000mm | 2825 | 828 |
| 411512 | Type 11 Single Panel | 500mm | 1200mm | 3390 | 994 |
| 411513 | Type 11 Single Panel | 500mm | 1300mm | 3673 | 1076 |
| 411514 | Type 11 Single Panel | 500mm | 1400mm | 3955 | 1159 |
| 411516 | Type 11 Single Panel | 500mm | 1600mm | 4520 | 1325 |
| 411518 | Type 11 Single Panel | 500mm | 1800mm | 5085 | 1490 |
| 411520 | Type 11 Single Panel | 500mm | 2000mm | 5650 | 1656 |
| 411604 | Type 11 Single Panel | 600mm | 400mm | 1321 | 387 |
| 411605 | Type 11 Single Panel | 600mm | 500mm | 1651 | 484 |
| 411606 | Type 11 Single Panel | 600mm | 600mm | 1982 | 581 |
| 411607 | Type 11 Single Panel | 600mm | 700mm | 2312 | 678 |
| 411608 | Type 11 Single Panel | 600mm | 800mm | 2642 | 774 |
| 411609 | Type 11 Single Panel | 600mm | 900mm | 2973 | 871 |
| 411610 | Type 11 Single Panel | 600mm | 1000mm | 3303 | 968 |
| 411611 | Type 11 Single Panel | 600mm | 1100mm | 3633 | 1065 |
| 411612 | Type 11 Single Panel | 600mm | 1200mm | 3963 | 1162 |
| 411613 | Type 11 Single Panel | 600mm | 1300mm | 4294 | 1258 |
| 411614 | Type 11 Single Panel | 600mm | 1400mm | 4624 | 1355 |
| 411616 | Type 11 Single Panel | 600mm | 1600mm | 5285 | 1549 |
| 411618 | Type 11 Single Panel | 600mm | 1800mm | 1742 | 1742 |
| 411620 | Type 11 Single Panel | 600mm | 2000mm | 6606 | 1936 |
| 411704 | Type 11 Single Panel | 700mm | 400mm | 1496 | 438 |
| 411705 | Type 11 Single Panel | 700mm | 500mm | 1870 | 548 |
| 411706 | Type 11 Single Panel | 700mm | 600mm | 2244 | 658 |
| 411707 | Type 11 Single Panel | 700mm | 700mm | 2618 | 767 |
| 411708 | Type 11 Single Panel | 700mm | 800mm | 2992 | 877 |
| 411709 | Type 11 Single Panel | 700mm | 900mm | 3366 | 986 |
| 411710 | Type 11 Single Panel | 700mm | 1000mm | 3740 | 1096 |
| 411712 | Type 11 Single Panel | 700mm | 1200mm | 4487 | 1315 |
| 411714 | Type 11 Single Panel | 700mm | 1400mm | 5235 | 1534 |
| 411716 | Type 11 Single Panel | 700mm | 1600mm | 5983 | 1754 |
| 411718 | Type 11 Single Panel | 700mm | 1800mm | 6731 | 1973 |
| TYPE 21 DOUBLE PANEL | |||||
| 421320 | Type 21 Double Panel | 300mm | 2000mm | 5227 | 1532 |
| 421405 | Type 21 Double Panel | 400mm | 500mm | 1667 | 489 |
| 421406 | Type 21 Double Panel | 400mm | 600mm | 2000 | 586 |
| 421408 | Type 21 Double Panel | 400mm | 800mm | 2667 | 782 |
| 421410 | Type 21 Double Panel | 400mm | 1000mm | 3334 | 977 |
| 421412 | Type 21 Double Panel | 400mm | 1200mm | 4000 | 1172 |
| 421414 | Type 21 Double Panel | 400mm | 1400mm | 4667 | 1368 |
| 421416 | Type 21 Double Panel | 400mm | 1600mm | 5334 | 1563 |
| 421418 | Type 21 Double Panel | 400mm | 1800mm | 6000 | 1759 |
| 421420 | Type 21 Double Panel | 400mm | 2000mm | 6667 | 1954 |
| 421504 | Type 21 Double Panel | 500mm | 400mm | 1604 | 470 |
| 421505 | Type 21 Double Panel | 500mm | 500mm | 2005 | 588 |
| 421506 | Type 21 Double Panel | 500mm | 600mm | 2405 | 705 |
| 421507 | Type 21 Double Panel | 500mm | 700mm | 2806 | 823 |
| 421508 | Type 21 Double Panel | 500mm | 800mm | 3207 | 940 |
| 421509 | Type 21 Double Panel | 500mm | 900mm | 3608 | 1058 |
| 421510 | Type 21 Double Panel | 500mm | 1000mm | 4009 | 1175 |
| 421512 | Type 21 Double Panel | 500mm | 1200mm | 4811 | 1410 |
| 421514 | Type 21 Double Panel | 500mm | 1400mm | 5613 | 1645 |
| 421516 | Type 21 Double Panel | 500mm | 1600mm | 6415 | 1880 |
| 421604 | Type 21 Double Panel | 600mm | 400mm | 1859 | 545 |
| 421605 | Type 21 Double Panel | 600mm | 500mm | 2324 | 681 |
| 421606 | Type 21 Double Panel | 600mm | 600mm | 2788 | 817 |
| 421607 | Type 21 Double Panel | 600mm | 700mm | 3253 | 953 |
| 421608 | Type 21 Double Panel | 600mm | 800mm | 3718 | 1090 |
| 421609 | Type 21 Double Panel | 600mm | 900mm | 4182 | 1226 |
| 421610 | Type 21 Double Panel | 600mm | 1000mm | 4647 | 1362 |
| 421611 | Type 21 Double Panel | 600mm | 1100mm | 5112 | 1498 |
| 421612 | Type 21 Double Panel | 600mm | 1200mm | 5577 | 1634 |
| 421614 | Type 21 Double Panel | 600mm | 1400mm | 6506 | 1907 |
| 421616 | Type 21 Double Panel | 600mm | 1600mm | 7435 | 2179 |
| 421618 | Type 21 Double Panel | 600mm | 1800mm | 8365 | 2452 |
| 421620 | Type 21 Double Panel | 600mm | 2000mm | 9294 | 2724 |
| 421704 | Type 21 Double Panel | 700mm | 400mm | 2100 | 616 |
| 421705 | Type 21 Double Panel | 700mm | 500mm | 2626 | 770 |
| 421706 | Type 21 Double Panel | 700mm | 600mm | 3151 | 923 |
| 421707 | Type 21 Double Panel | 700mm | 700mm | 3676 | 1077 |
| 421708 | Type 21 Double Panel | 700mm | 800mm | 4201 | 1231 |
| 421709 | Type 21 Double Panel | 700mm | 900mm | 4726 | 1385 |
| 421710 | Type 21 Double Panel | 700mm | 1000mm | 5251 | 1539 |
| 421712 | Type 21 Double Panel | 700mm | 1200mm | 6301 | 1847 |
| 421714 | Type 21 Double Panel | 700mm | 1400mm | 7351 | 2155 |
| 421716 | Type 21 Double Panel | 700mm | 1600mm | 8402 | 2462 |
| TYPE 22 DOUBLE PANEL | |||||
| 422304 | Type 22 Double Panel | 300mm |
400mm |
1342 | 393 |
| 422308 | Type 22 Double Panel | 300mm | 800mm | 2683 | 786 |
| 422314 | Type 22 Double Panel | 300mm | 1400mm | 4696 | 1376 |
| 422318 | Type 22 Double Panel | 300mm | 1800mm | 6037 | 1769 |
| 422320 | Type 22 Double Panel | 300mm | 2000mm | 6708 | 1966 |
| 422405 | Type 22 Double Panel | 400mm | 500mm | 2148 | 630 |
| 422406 | Type 22 Double Panel | 400mm | 600mm | 2577 | 755 |
| 422408 | Type 22 Double Panel | 400mm | 800mm | 3437 | 1007 |
| 422410 | Type 22 Double Panel | 400mm | 1000mm | 4296 | 1259 |
| 422412 | Type 22 Double Panel | 400mm | 1200mm | 5155 | 1511 |
| 422414 | Type 22 Double Panel | 400mm | 1400mm | 6014 | 1763 |
| 422416 | Type 22 Double Panel | 400mm | 1600mm | 6873 | 2014 |
| 422418 | Type 22 Double Panel | 400mm | 1800mm | 7732 | 2266 |
| 422420 | Type 22 Double Panel | 400mm | 2000mm | 8591 | 2518 |
| 422504 | Type 22 Double Panel | 500mm | 400mm | 2065 | 605 |
| 422505 | Type 22 Double Panel | 500mm | 500mm | 2581 | 757 |
| 422506 | Type 22 Double Panel | 500mm | 600mm | 3097 | 908 |
| 422507 | Type 22 Double Panel | 500mm | 700mm | 3613 | 1059 |
| 422508 | Type 22 Double Panel | 500mm | 800mm | 4130 | 1210 |
| 422509 | Type 22 Double Panel | 500mm | 900mm | 4646 | 1362 |
| 422510 | Type 22 Double Panel | 500mm | 1000mm | 5162 | 1513 |
| 422511 | Type 22 Double Panel | 500mm | 1100mm | 5679 | 1664 |
| 422512 | Type 22 Double Panel | 500mm | 1200mm | 6195 | 1816 |
| 422513 | Type 22 Double Panel | 500mm | 1300mm | 6711 | 1967 |
| 422514 | Type 22 Double Panel | 500mm | 1400mm | 7227 | 2118 |
| 422516 | Type 22 Double Panel | 500mm | 1600mm | 8260 | 2421 |
| 422518 | Type 22 Double Panel | 500mm | 1800mm | 9292 | 2723 |
| 422520 | Type 22 Double Panel | 500mm | 2000mm | 10325 | 3026 |
| 422604 | Type 22 Double Panel | 600mm | 400mm | 2384 | 699 |
| 422605 | Type 22 Double Panel | 600mm | 500mm | 2980 | 874 |
| 422606 | Type 22 Double Panel | 600mm | 600mm | 3576 | 1048 |
| 422607 | Type 22 Double Panel | 600mm | 700mm | 4173 | 1223 |
| 422608 | Type 22 Double Panel | 600mm | 800mm | 4769 | 1398 |
| 422609 | Type 22 Double Panel | 600mm | 900mm | 5365 | 1572 |
| 422610 | Type 22 Double Panel | 600mm | 1000mm | 5961 | 1747 |
| 422611 | Type 22 Double Panel | 600mm | 1100mm | 6557 | 1922 |
| 422612 | Type 22 Double Panel | 600mm | 1200mm | 7153 | 2096 |
| 422613 | Type 22 Double Panel | 600mm | 1300mm | 7749 | 2271 |
| 422614 | Type 22 Double Panel | 600mm | 1400mm | 8345 | 2446 |
| 422616 | Type 22 Double Panel | 600mm | 1600mm | 9537 | 2795 |
| 422618 | Type 22 Double Panel | 600mm | 1800mm | 10729 | 3145 |
| 422620 | Type 22 Double Panel | 600mm | 2000mm | 11922 | 3494 |
| 422704 | Type 22 Double Panel | 700mm | 400mm | 2679 | 785 |
| 422705 | Type 22 Double Panel | 700mm | 500mm | 3349 | 982 |
| 422706 | Type 22 Double Panel | 700mm | 600mm | 4019 | 1178 |
| 422707 | Type 22 Double Panel | 700mm | 700mm | 4688 | 1374 |
| 422708 | Type 22 Double Panel | 700mm | 800mm | 5358 | 1570 |
| 422709 | Type 22 Double Panel | 700mm | 900mm | 6028 | 1767 |
| 422710 | Type 22 Double Panel | 700mm | 1000mm | 6698 | 1963 |
| 422712 | Type 22 Double Panel | 700mm | 1200mm | 8037 | 2356 |
| 422714 | Type 22 Double Panel | 700mm | 1400mm | 9377 | 2748 |
| 422716 | Type 22 Double Panel | 700mm | 1600mm | 10716 | 3141 |
| 422718 | Type 22 Double Panel | 700mm | 1800mm | 12056 | 3533 |
Additional information
| Weight | N/A |
|---|---|
| ccp_Type | Radiators |
| Main Colour | White |
| Brand | Prorad |
| Material | steel |
| MPN | 421504, 421505, 421506, 421507, 421508, 421509, 421510, 421512, 421514, 421516 |
| Country/Region of Manufacture | Turkey |
| Radiator Type | Convector Panel Radiator |
| Finish | White Powder Coated |
| Length | 1000mm, 1200mm, 1400mm, 1600mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm |
| Radiator Style | Type 21 |
| Height | 500mm |
| Sub-Type | Type 21 Double Panel Convector Radiator |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Width | 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1200mm, 1400mm, 1600mm |
| Mounting | Wall Mounted |
| Woocategory3 | Double Panel Type 21 Radiators |
| EXTRA | 421504, 421505, 421506, 421507, 421508, 421509, 421510, 421512, 421514, 421516 |
| Includes | Air Vent, Blanking Plug, Fixings |
| Excludes | Valves |
| Heat Output BTU | 1604 BTU, 2005 BTU, 2405 BTU, 2806 BTU, 3207 BTU, 3608 BTU, 4009 BTU, 4811 BTU, 5613 BTU, 6415 BTU |
| Heat Output Watts | 1058 W, 1175 W, 1410 W, 1645 W, 1880 W, 470 W, 588 W, 705 W, 823 W, 940 W |
| Panel | Type 21 Double Panel |
| Heat Source | Central Heating |
| Guarantee | 10 Years |
| Woocategory1 | Radiators |
| Woocategory2 | Compact Radiators |
Reviews
There are no reviews yet.
